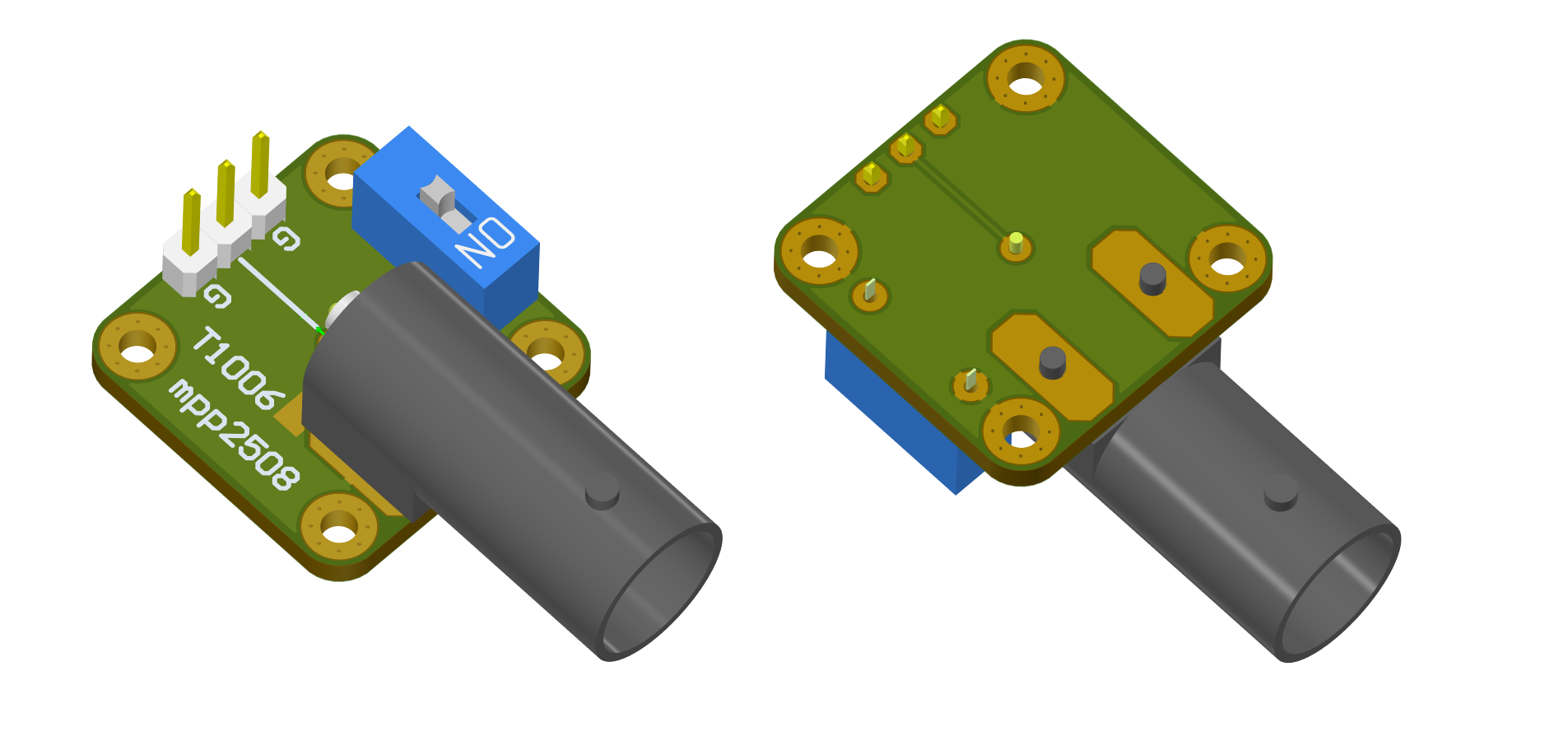

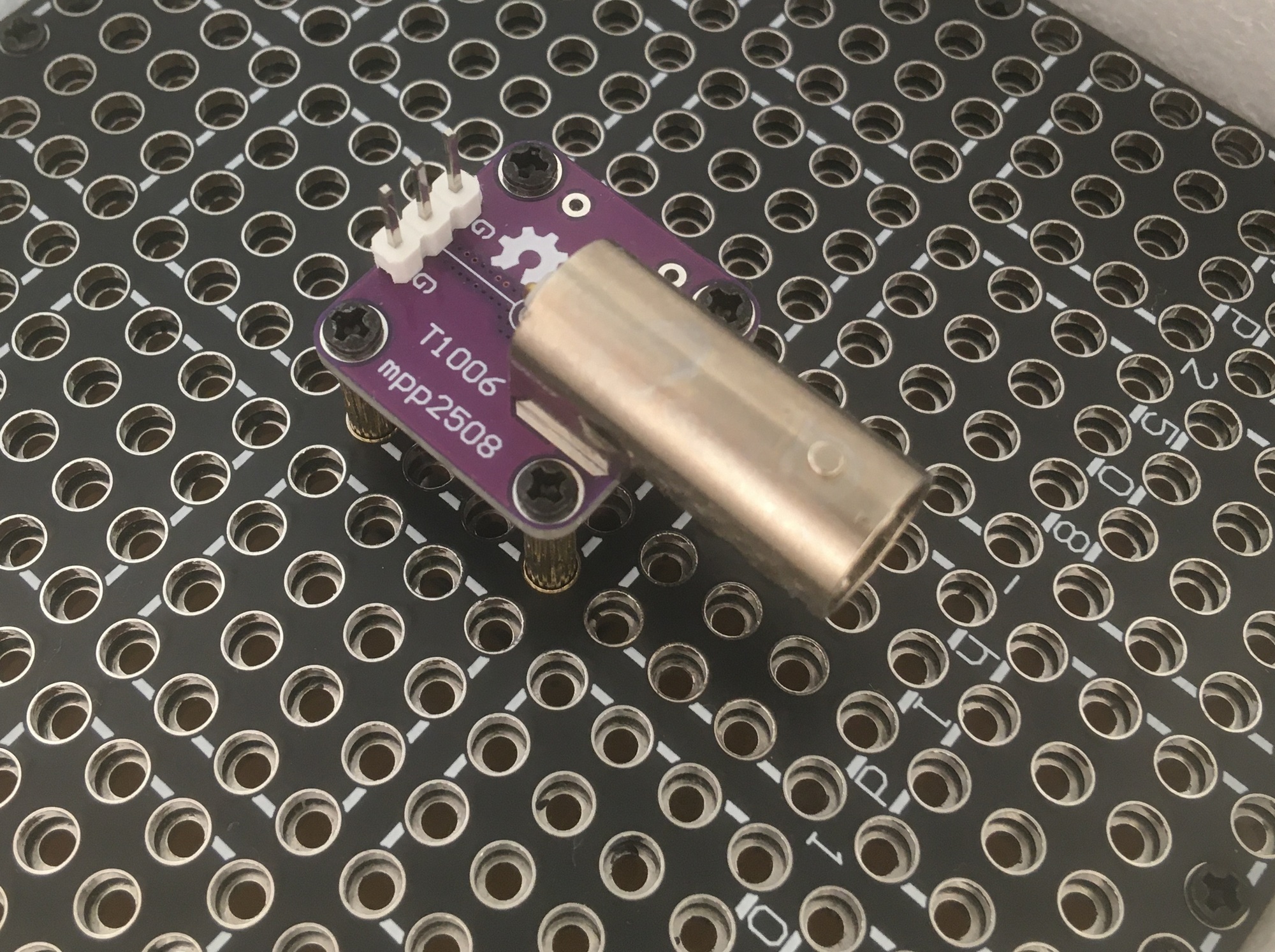

BNC T1006 (60)
BNC T1006 (60)
при звпайке bnc вытянуть серцевину, иначе при прогреве она расплавится
